-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

Brand Name : JISI

Model Number : BWX42L

Certification : SGS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, T/T,Paypal

Supply Ability : 100 per day

Delivery Time : 7-10 work days

Packaging Details : Carton packing

Type : Insulated

Outer size for EPP box : 46*46*46 cm

Inter size for EPP box : 35*35*35cm

Capacity for EPP box : 42 L

Outer material : Plastic

Inner material : Vacuum insulation panel + PU foaming

Used for : Medical blood vaccine and food

Inner temperature : -20 degrees

Cold time : 40 hours

Contact Now

-20C Vacuum Insulation Material Medical Ice Box Cooler For 48 hours-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

More detail:

Product name -20C Vacuum Insulation Material Medical Ice Box Cooler For 48 hours
Outer size 46*46*46cm
Inner size 35*35*35cm
Inner vip thickness 30mm
Capacity 42L
Weight 3kg
Inner material Vacuum insulation panel + PU
Used for Long time Medical, vaccine, blood storage and ice cream, food transport
Accessories PCM Ice Brick
The thermal conductivity <0.0025w/m.k
Coolant Series PCM phase change materials
Temperature 25℃,15℃,2-8℃,0℃,-15 ℃, -18℃,-22℃,-25℃ and -30℃

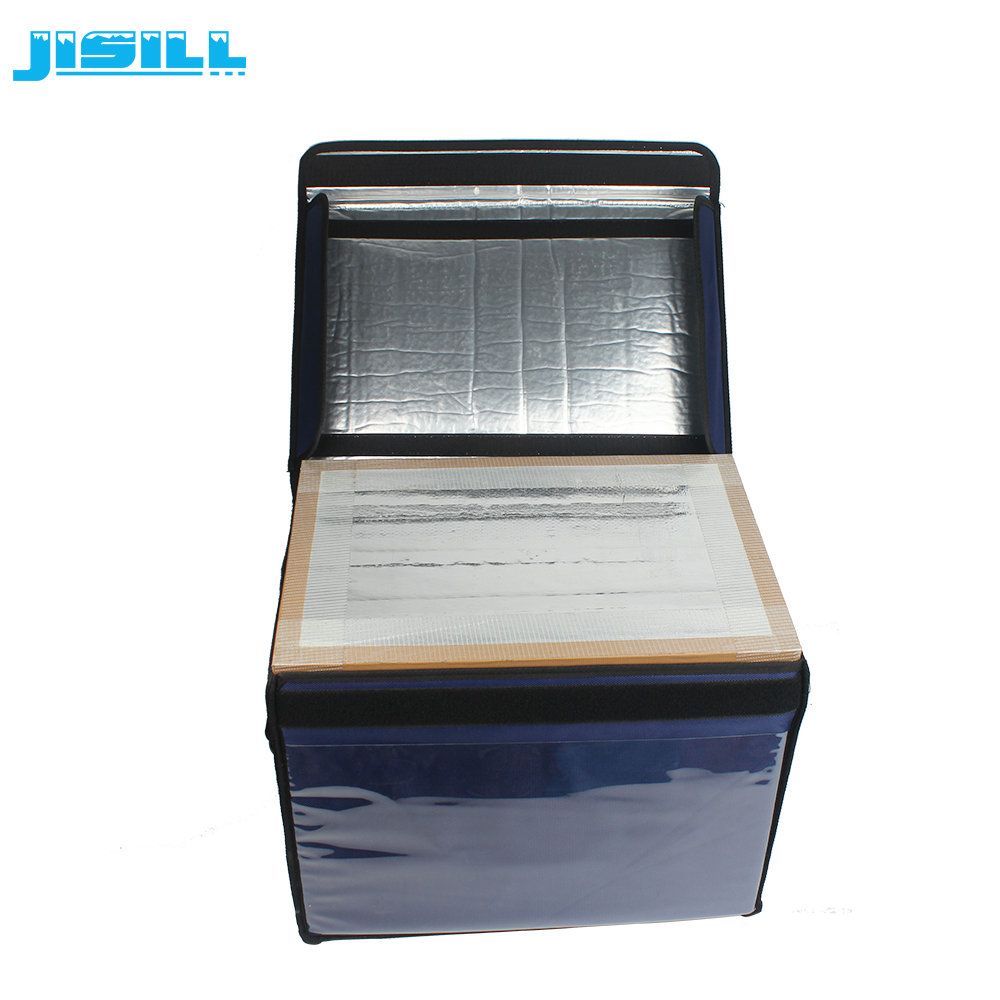

Detailed Images

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

Testing environment temperature - 35 Celsius degree:

  • 2-8 celsius degree cold source keep cold 48 hours
  • -20 celsius degree cold source keep cold 40 hours

Description

  • Cold Chain Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for:
  • Vaccines, blood, veterinary , laboratory, Biopharmaceutical, Life Science and other Medical Products
  • IVD products and biological specimens
  • National Health Service,WHO,UNICEF, Blood & Tissue Transplant Agencies
  • Selected fresh food, drink and dairy products

External combination type

  1. PE plastic box - can be use for ice cream transport
  2. Oxford fabric bag -can be use for medical cold storage
  3. Carton packing - can be use for food fresh storage transport

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen
Vacuum Insulation Panel And PU Foam Features:
PU-VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property. PU foam moulding, have super thermal insulation, the thermal conducitivity is lower than 0.0025w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, enterprises can flexibly choose and reasonable collocation shceme, this can greatly simplify operating, reduce lobor costs. For pharmaceutical logistics enterprises to solve transport problems.
Related Products

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen

-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen
-20C Thermal Insulation Panels With 42L Capacity For Medical Blood Vaccine And Food For Food Frozen
  • What is ice box/ice pack ?
    Ice box is equivalent to the average freezer or refrigerator freezer, is the ideal cooling agent.
  • What is "SAP"and "CMC"?
    (Super Absorbent Polymer, SAP) is a kind of new functional Polymer material, it does not dissolve in water, and insoluble in organic solvents, good dispersibility, avirulent insipidity, pressure dehydration, can use repeatedly, bibulous rate can be generated in dozens of seconds gel. It is personal hygiene items, industrial and agricultural production, civil construction and other fields are widely used.
    (Carboxyl methyl Cellulose, CMC) CMC is a kind of important Cellulose, is a natural fiber after chemical modification of a kind of water-soluble good polyanionic Cellulose compounds, soluble in hot and cold water, odourless, tasteless, non-toxic.Is a kind of macromolecular chemistry, can swell, swelling in water, can form gel transparent viscous liquid.
  • How is ice box/ice pack made?
    Mould design, mould making, blow molding processing.
  • How do I store ice box /ice pack ?
    As long as in the household refrigerator freezing night, make ice box contents into a solid
    Body, and then use or preserved in the frozen indoors, can take out to use at any time.
  • Is ice box /ice pack safe?
    Safe,food grade HDPE material ,BPA free .
  • Can you OEM production ?
    We can ,as long as you have yourself design .we can make your products according to your requirements .
  • How long the delivery time ?
    We can according to customer order, arrange machine and personnel, we will try to delivery in the customer scheduled time.
